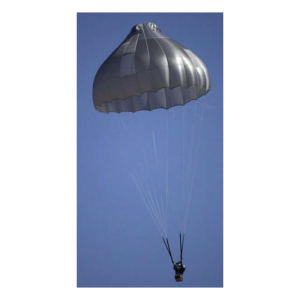

T-11R RESERVE PARACHUTE SYSTEM
T-10R has been replaced into T-11R reserve parachute, in addition to its new main covering.
T-11R is an Aero-conical design that was extensively proved by the USA Army in different types of bad operation test as a main cupola, stating in this way that T-11R is more comfortable and more effective than T-10R.
The reserve action points are at the same place as the main hooking up points, this allows display force to be transmitted and to continue consequently in a vertical position.
In addition to this, it allows paratrooper keeping a vertical position under reserve parachute cupola, providing in this manner a proper landing.
Order Information
| Part number | 11-1-7730-1 |
|---|---|
| NSN | 1670-01-535-2248 20.3ft |
| Cupola Diameter | 6.2mts |
| Number of Sections | 20 |
| Suspension Lines Number | 20 |
Dropping speed at Sea Level
| 400 lb (181.4 kg) AUW | <27ft s/sec<8.2 mts/sec |
|---|---|
| Height losing after a 4 sec delay from parachute activation | 150 ft / 46 mts |
| Assembly Weight | 14.7 lb / 6.7 Kg |
| Aircraft Maximum Speed | 150 KIAS / 278 Km/h |
| Maximum Weight | 400 lbs / 180 Kg |
Dropping Speed
| With the Whole 400lb Weight | (1 80kg) 27 ft/sec 8.22 m/sec |
|---|---|
| Useful Life | 15 years useful life, 12 years durability |
| Repack | 365 days |
