T-MINI-G25

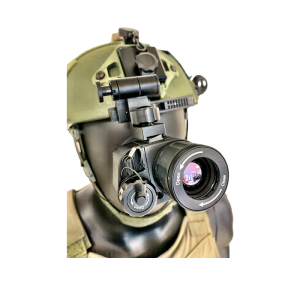

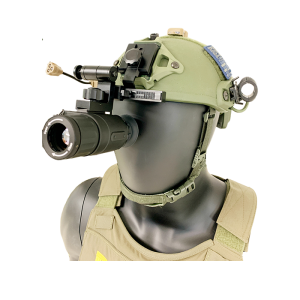

Our T-MINI-G25 is a thermal image generator, multifunctional VOX uncooled infrared focal plane matrix. It is a small size, lightweight, high-performance, multi-purpose, excellent quality monocular that can be used as a handheld device, helmet mounted or mounted on a picatinny rail.
Its advanced image processor, high performance electronics and optimized infrared optics, create excellent image clarity and provide better detection and classification.
We manufacture two versions: G25-A and G25-S, ideal for a wide use in search and rescue, hunting, outdoor sports, and other applicable fields for military, and police.
Parameters
Dimension | Length 101.5 / 132mm (to eye protector) x width 43.25 / 48mm (with base mount) height 69mm, tolerance +/-2mm |
---|---|
Weight | 235 g / 245g +/- 10g |
Battery | 16340/16650 / CR123 / AA |
Duration of the Battery | Up to 2 hours / 3 hours / 1.5 hours |
Power Consumption | < 2000mW |
Operating temperature | -10° C a + 50° C |
IP Classification | IP67 |
External Interface | 2 * M3 holes |
Characteristics
Description | G25-A | G25-S-17 | G25-S-12 |
---|---|---|---|
Technology | Thermal | Thermal | Thermal |
Resolution | 384 x 288 | 640 x 512 | 640 x 512 |
Sensor Frame Rate | 50Hz | 50Hz | 50Hz |
Spectral Response | 8-14µm | 8-14µm | 8-14µm |
Sensor Pixel size | 17µm | 17µm | 12µm |
Thermal Sens. | ≤50Mk | ≤50Mk | ≤50Mk |
NETD | ≤50mK @ 25° C | ≤50mK @ 25° C | ≤50mK @ 25° C |
MRTD | ≤60mK @ 25° C | ≤60mK @ 25° C | ≤60mK @ 25° C |
Detection | (1.7 x 0.5m) 700m | (1.7 x 0.5m) 1378m | (1.7 x 0.5m) 1378m |
Start Time | ≤3 seconds | ≤3 seconds | ≤3 seconds |
Sensor | VOX | VOX | VOX |
Interface | Type C | Type C | Type C |
Objective Lens | 19mm manual | 22mm manual | 25mm manual |
FOV | 19.5 ° x 14.7 ° | 18.5 ° x 14 ° | 17.5 ° × 14 ° |
Eye Relief | 15mm | 15mm | 15mm |
Pupillary Outlet | 5mm | 5mm | 5mm |
Set diopter | -4D to +3D | -4D to +3D | -4D to +3D |
Increase | 1x | 1x | 1x |
Digital Mag | X 1.0-4.0 (8x) | X 1.0-4.0 (8x) | X 1.0-4.0 (8x) |
Obj. Focusing Range | 2m to ∞ | 2m to ∞ | 2m to ∞ |
Display | 1280 x 960 LCOS | 1280 x 960 LCOS | 1280 x 960 LCOS |
Laser Type 3R | 650nm 4.7mW | 650nm 4.7mW | 650nm 4.7mW |
Function
Polarization Image | Hot black, hot white, bright red and pseudo color |
---|---|
Image Calibration | Background calibration / shutter calibration / image brightness / sharpness / contrast adjustment |
Digital Compass | Yes |
Tilt Measurement | Yes |
Motion Sensor | Yes |
PIP | Yes |
Bluetooth | Yes |
Range Finder | Statistical |
Video Output | Composite signal |
