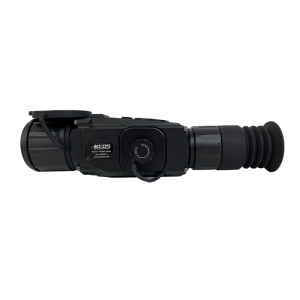

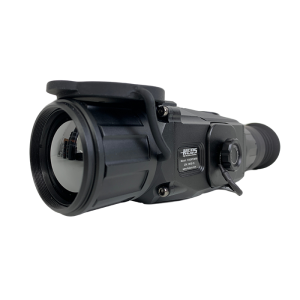

T-SIGHT-SW50/SLR50/SS50/SS75
Our thermal sights T-SIGHT-SW50 / SLR50 / SS50 / SS75 series feature an advanced VOX detector that obtains high-quality thermal images.
Our sights can operate in extreme temperatures, they have easy access buttons even when gloves are used, and they are easily mounted on a picatinny rail.
Its components are protected by a metal housing using space aluminum designed for roughhandling and shock resistant with a capacity of up to 710G. They have digital zoom, PIP, with statistical range finder. As options can be manufactured with WiFi or laser telemeter.
Characteristics
| Description | SW50 | SLR50 | SS50 | SS75 |
|---|---|---|---|---|
| Dimensions mm +/-3 | 196 x 55 x 50 / 242 x 60 x 60 | 196 x 55 x 50 / 242 x 60 x 60 | 196 x 55 x 60 / 242 x 100 x 60 | 204 x 71 x 76 / 250 x 76 x 76 |
| Weight | 740g +/-10g | 785g +/- 10g | 740g +/-10g | 850g +/-10g |
| Battery | 4 x CR123 | 4 x CR123 | 4 x CR123 | 4 x CR123 |
| Battery Duration | 7 hours | 5 hours | 5 hours | 5 hours |
| Temp. Oper. | -40° c a 50° c | -20° c a 50° c | -40° c a 50° c | -40° c a 50° c |
| Resolution | 384 x 288 | 640 x 512 | 640 x 512 | 640 x 512 |
| Frame x sec. | 50Hz | 50Hz | 50Hz | 50Hz |
| Pixel size | 17µm | 12µm | 12µm | 12µm |
| Sens. Thermal | ≤50Mk | ≤50Mk | ≤50Mk | ≤50Mk |
| Detection | (1.7×0.5m) 1833m | (1.7×0.5m) 1833m | (1.7×0.5m) 1833m | (1.7×0.5m) 2750m |
| Start Time | ≤3 seconds | ≤3 seconds | ≤3 seconds | ≤3 seconds |
| Sensor | VOX | VOX | ||
| Objective Lens | 50mm | 50mm | 50mm | 75mm |
| FOV | 7.5 ° x 5.5 ° | 7.5 ° x 5.5 ° | 12.4 ° × 9.9 ° | 8.3 ° × 6.6 ° |
| Eye Relief | 48mm | 48mm | 48mm | 48mm |
| Diopter Adjustment | -6D a +4D | -6D a +4D | -6D a +4D | -6D a +4D |
| Increase | 3.4x – 13.6x | 3.4x – 13.6x | 2x – 16x | 3x – 24x |
| Display OLED | 1024 x 768 | 1024 x 768 | 1024 x 768 | 1024 x 768 |
| Laser Range Finder | No | Yes | No | No |
Function
| Polarization Image | Hot black, hot white, bright red and pseudo color |
|---|---|
| Image Calibration | Cackground calibration / shutter calibration/ image brightness / sharpness / contrast adjustment |
| Digital Compass | Yes |
| Tilt Measurement | Yes |
| Motion Sensor | Yes |
| PIP | Yes |
| Bluetooth | Yes |
| Rank Finder | Statistical |
| Video Output | Composite Signal |
