Optics

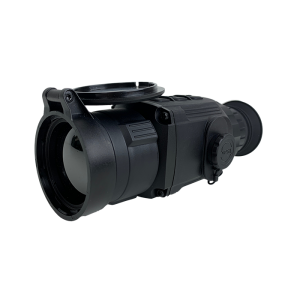

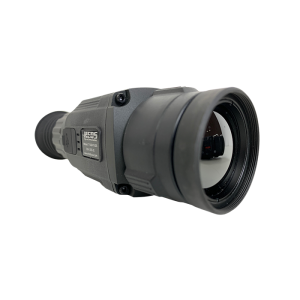

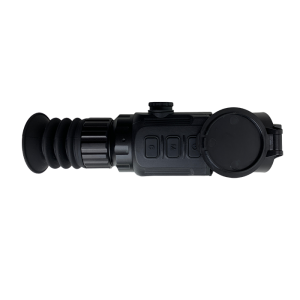

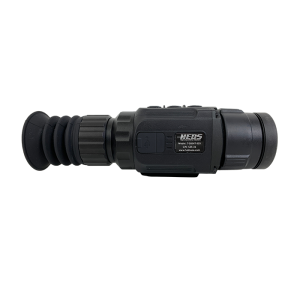

T-SIGHT-S25/S35
Our T-SIGHT-S25 / S35 series thermal sights feature an advanced VOX detector in conjunction with a Matrix III allegory to obtain high quality thermal images.
Our sights can operate in extreme temperatures, they have easy access buttons even when gloves are used, and they are easily mounted on a picatinny rails.
Its components are protected by a metal housing using space aluminum designed for rough handling and shock resistant with a capacity of up to 1000G. They also have Bluetooth for easier handling.
Parameters
| Dimension | (length 183 / 146mm / 52mm x width 60 x height 58mm / 53, tolerance + / 2mm) |
|---|---|
| Weight | 395g +/- 10g |
| Battery | 2 x CR123 |
| Duration of the Battery | Up to 4 hours |
| IP Classification | IP67 |
Characteristics
| Description | S25 | S35 |
|---|---|---|
| Resolution | 384 x 288 | 384 x 288 |
| Sensor Frame Rate | 50Hz | 50Hz |
| Spectral Response | 17µm | 12µm |
| Thermal Sens. | ≤50Mk | ≤50Mk |
| NETD | ≤50mK | ≤50mK |
| Detection | (1.7 x 0.5m) 915m | (1.7 x 0.5m) 1280m |
| Start Time | ≤3 seconds | ≤3 seconds |
| Sensor | VOX | VOX |
| Interface | Type C | Type C |
| Objective Lens | 25mm manual | 35mm manual |
| FOV | 19.5 ° x 11.2 ° | 10.6 ° x 8 ° |
| Set diopter | -4D to +5D | -5D to +5D |
| Increase | 1.4x – 5.6x | 2.0x – 8.0x |
| Display | 1280 x 960 LCOS | 1280 x 960 LCOS |
Function
| Image Polarization | Hot black, warm white, bright red and pseudo color |
|---|---|
| Image Calibration | Background calibration / shutter calibration / image brightness / sharpness / contrast adjustment |
| Digital Compass | Yes |
| PIP | Yes |
| Bluetooth | Yes |
| Range Finder | Statistical |
| Video Output | Composite signal |
