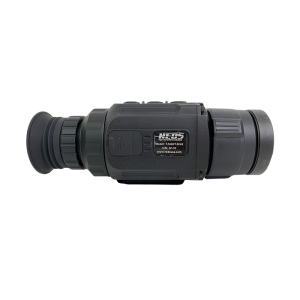

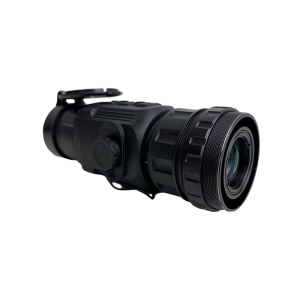

T-SIGHT-SC42
This thermal sensor adaptable to individual sights or monoculars T-SIGHT-SC42, series, features an advanced VOX detector that obtains high-quality thermal images.
This series is designed to be adapted to all types of daytime sights. They have easy access buttons. It does not require “zeroing”, the sight and can also be used as an independent monocular.
Fits on the front of a daytime sight, our advanced technology allows to maintain stability when used on sights. It is not required to make corrections to the daytime sight, and this being compact and lightweight, it does not affect the balance of the daytime sight.
Counts with an accelerometer and digital compass which helps to accurately identify the angles allowing to indicate the direction and degree of lateral inclination. As option, it can be manufactured with WiFi.
Parameters
Dimensions | 155mm x 61.8mm x 59mm |
---|---|
Weight | 420g |
Battery | 2 x CR123 |
Battery Duration | 4 hours |
Temp. Operated | -20° C to 40° C |
Resolution | 384 x 288 |
Frame x sec | 50Hz |
Pixel Size | 17µm |
Thermal sens. | ≤50Mk |
Detection | (1.7×0.5m) 1540m |
Start Time | ≤3 seconds |
Sensor | VOX |
Objective Lens | 42mm |
FOV | 8.9° x 6.7° |
Diopter Adjustment | -5D a +5D |
Increase | With sight 1 x Monocular 2.9-11.6 x |
Display OLED | 1024 x 768 |
Digital Rangefinder | Yes |
Digital Inclinometer | Yes |
