Optics
B-1060-8X42L-1800
We manufacture binoculars for police, military or tactical use. We manufacture a different range of binoculars to maximize user needs.

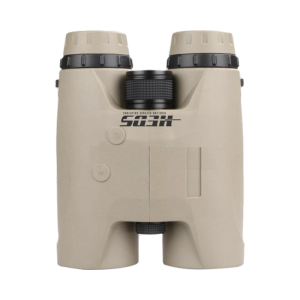

Our model B-1060-8x42L-1800, is a tactical binocular with magnification of x 8 and an objective diameter of 42 that incorporates a laser range finder with a range of up to 1800m. It is used by troops in field training and operations. This is a nitrogen sealed binocular and manufactured in compliance with the military standard MIL-STD-810G.
This model offers a clear, clean and bright image and features a CFR21 class 1 laser that can acquire objects from 5 to 1800m in either metric or yard measurements and with angle measurement.
Characteristics
| Magnification | 8xm |
|---|---|
| Objective Diameter | 42 |
| Nitrogen | Yes / sealed |
| Viewing Angle | 7° |
| Eye Relief | 16mm |
| Focus | Eyepiece |
| Ocular Output | 5.3mm |
| 1000m field of view | 122m 7° Coating and transfer (lenses) > 95% (each optical lens and prism) Light transmission |
| Coating | Fully Coated (FMC Fully Multi Coated) / Broadband Film |
| Diopter Adjustment | Each eye, Dioptric adjustment = ± 4 |
| Armor | Waterproof long life and resistance (oil, acid, salt water, extreme temperature and shock absorber) |
| Height and Angle Measurement | Yes |
| Option | SUMR type grid |
| Weight | 1,141 grams |
| Temperature | -55 +70 |
| Battery | CR2-3V Lithium |
| Auto off | 30 sec |
| Work duration | 10k approx |
| Standard | Manufactured according to MIL-STD-810G |
| Size | 173mm x 135mm x 64mm approx |
| Accessories Included | Lens caps, transport strap with adjustment, case and cleaning kit |
| Color | Black, green and coffee |
Laser
| Range | 5-1800 (available 5-1500 and 2000) |
|---|---|
| Unit Measured | M and Yd |
| Measuring Range | +/-60° |
| Deviation | +/-5° |
| Accuracy | +/-1m+/-0.1% |
| Type | FDA 1 (CFR21) |
| Long Wave | 905nm |
| Display | LCD |
| Protection Level | IP54 |
